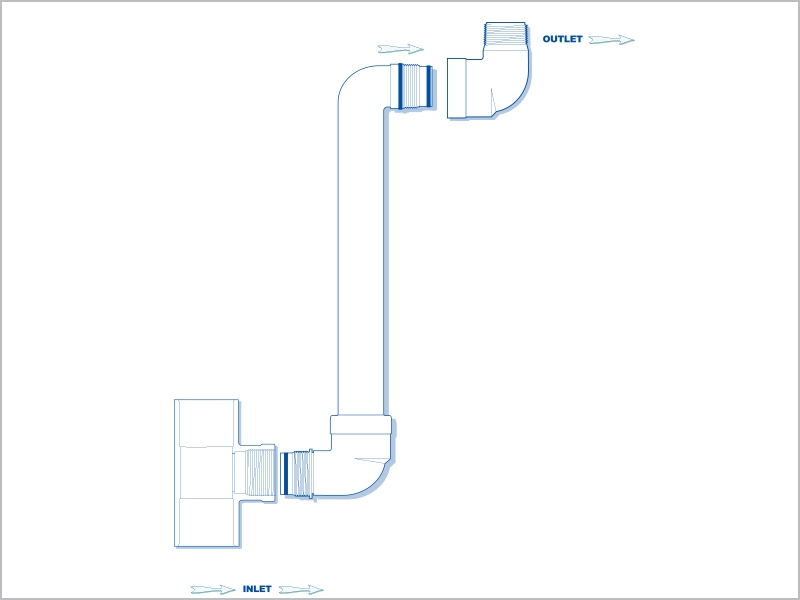

## 2” Acme Ultra Unibody

You can find Ordering Instructions at the bottom of this page.

### Part Number Generator

First select "Size", then choose other options with the selection menus or by clicking icons below.

## Inlets

### 2" Inlet

(A1) 2" Soc x 2" Soc x 1" Acme

(A2) 2" Soc x 2" Soc x 1 1/4" ACME

(A3) 2" Soc x 2" Soc x 1 1/2" ACME

## Outlets

### IPS Standard

**Iron Pipe Size Standard**

(1) FS x Socket 1" or 1 1/4" or 1 1/2"

(2) FS x Fipt 1" or 1 1/4" or 1 1/2"

(3) FS x Mipt 1" or 1 1/4" or 1 1/2"

(4) 1" FS x 1 1/4" Mipt

(5) 1" FS x 1 1/2" Mipt

(6) 1 1/4" FS x 1 1/2" Mipt

(7) 1 1/4" FS x 1" Mipt

(8) 1 1/2" FS x 1" Mipt

(9) 1 1/2" FS x 1 1/4" Mipt

### Acme Outlets

(13) 1" FS x 1" ACME

(14) 1" FS x 1 1/4" Acme

(15) 1" FS x 1 1/4" Acme

(16) 1 1/4" FS x 1" Acme

(17) 1 1/4" FS x 1 1/4" Acme

(18) 1 1/4" FS x 1 1/2" Acme

(20) 1 1/4" FS x 1 1/2" Acme

(21) 1 1/4" FS x 1 1/2" Acme

### BSTP

**British Standard Pipe (Tapered Thread)**

(22) FS x BSPT 1" or 1 1/4" or 1 1/2"

(23) 1" FS x 1 1/4" BSPT

(24) 1" FS x 1 1/4" BSPT

(25) 1 1/4" FS x 1 1/2" BSPT

(26) 1 1/4" FS x 1" BSPT

(27) 1 1/2" FS x 1 1/4" BSPT

## Lay Length

### Lay Length

**Order Code / Inch / Metric**

(6) 6" 0

(8) 8" 0

(10) 10" 0

(12) 12" 0

(14) 14" 0

(16) 16" 0

(18) 18" 0
