Acme Base Ultra Unibody

You can find Ordering Instructions at the bottom of this page.


Part Number Generator

First select "Size", then choose other options with the selection menus or by clicking icons below.





Part Number:
Box Quantity: 20

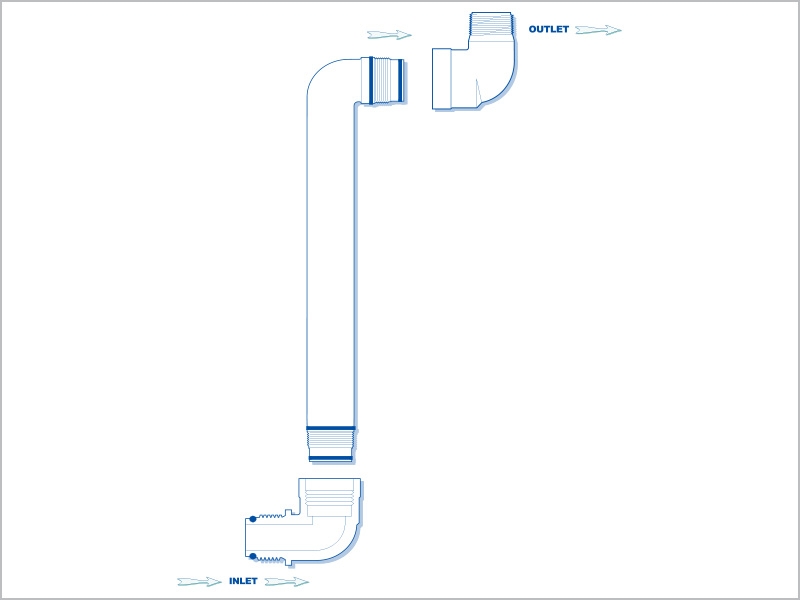

Inlets

Acme Inlets

(A1) 1" Acme x 1" FS
(A3) 1" Acme x 1 1/2" FS
(A4) 1" Acme x 1 1/4" FS
(A5) 1 1/4" Acme x 1 1/4" FS
(A6) 1 1/2" Acme x 1 1/4" FS
(A9) 1 1/2" Acme x 1 1/2" FS

Outlets

IPS Standard

Iron Pipe Size Standard
(1) FS x Socket 1" or 1 1/4" or 1 1/2"
(2) FS x Fipt 1" or 1 1/4" or 1 1/2"
(3) FS x Mipt 1" or 1 1/4" or 1 1/2"
(4) 1" FS x 1 1/4" Mipt
(5) 1" FS x 1 1/2" Mipt
(6) 1 1/4" FS x 1 1/2" Mipt
(7) 1 1/4" FS x 1" Mipt
(8) 1 1/2" FS x 1" Mipt
(9) 1 1/2" FS x 1 1/4" Mipt

Acme Outlets

(13) 1" FS x 1" Acme
(14) 1" FS x 1 1/4" Acme
(15) 1" FS x 1 1/2" Acme
(16) 1" FS x 1 1/2" Acme
(17) 1 1/4" FS x 1 1/4" Acme
(18) 1 1/4" FS x 1 1/2" Acme
(20) 1 1/2" FS x 1 1/4" Acme
(21) 1 1/2" FS x 1 1/2" Acme

BSPT

British Standard Pipe (Tapered Thread)
(22) FS x BSPT 1" or 1 1/4" or 1 1/2"
(23) 1" FS x 1 1/4" BSPT
(24) 1" FS x 1 1/2" BSPT
(25) 1 1/4" FS x 1 1/2" BSPT
(26) 1 1/4" FS x 1" BSPT
(27) 1 1/2" FS x 1 1/4" BSPT

Lay Length

Lay Length

(6) 6" 0
(8) 8" 0
(10) 10" 0
(12) 12" 0
(14) 14" 0
(16) 16" 0
(18) 18" 0

All swing joint components are double O-ring sealed.

* Quick Coupler Outlets available. Contact Dura's Sales Department for part numbers and pricing.
