O-Ring Ell Standard Unibody

You can find Ordering Instructions at the bottom of this page.


Part Number Generator

First select "Size", then choose other options with the selection menus or by clicking icons below.





Part Number:
Box Quantity: 10

Inlets

IPS Standard

Iron Pipe Size Standard
(A1-a) 2" Soc x 1" FS
(A2-a) 2" Soc x 1 1/4" FS
(A3-a) 2" Soc x 1 1/2" FS
(A1-b) 2 1/2" Soc x 1" FS
(A2-b) 2 1/2" Soc x 1 1/4" FS
(A3-b) 2 1/2" Soc x 1 1/2" FS

JIS Standard

Japanese Industrial Standard
(J1-a) 50mm Soc x 1" FS
(J2-a) 50mm Soc x 1 1/4" FS
(J3-a) 50mm Soc x 1 1/2" FS
(J1-b) 65mm Soc x 1" FS
(J2-b) 65mm Soc x 1 1/4" FS
(J3-b) 65mm Soc x 1 1/2" FS

Outlets

IPS Standard

Iron Pipe Size Standard
(1) FS x Socket 1" or 1 1/4" or 1 1/2"
(2) FS x Fipt 1" or 1 1/4" or 1 1/2"
(3) FS x Mipt 1" or 1 1/4" or 1 1/2"
(4) 1" FS x 1 1/4" Mipt
(5) 1" FS x 1 1/2" Mipt
(6) 1 1/4" FS x 1 1/2" Mipt
(7) 1 1/4" FS x 1" Mipt
(8) 1 1/2" FS x 1" Mipt
(9) 1 1/2" FS x 1 1/4" Mipt

Acme Outlets

(13) 1" FS x 1" Acme
(14) 1" FS x 1 1/4" Acme
(15) 1" FS x 1 1/2" Acme
(16) 1 1/4" FS x 1" Acme
(17) 1 1/4" FS x 1 1/4" Acme
(18) 1 1/4" FS x 1 1/2" Acme
(20) 1 1/2" FS x 1 1/4" Acme
(21) 1 1/2" FS x 1 1/2" Acme

BSPT

British Standard Pipe (Tapered Thread)
(22) FS x BSPT 1" or 1 1/4" or 1 1/2"
(23) 1" FS x 1 1/4" BSPT
(24) 1" FS x 1 1/2" BSPT
(25) 1 1/4" FS x 1 1/2" BSPT
(26) 1 1/4" FS x 1" BSPT
(27) 1 1/2" FS x 1 1/4" BSPT

Lay Length

Lay Length

(6) 6" 152mm
(8) 8" 203mm
(10) 10" 254mm
(12) 12" 305mm
(14) 14" 356mm
(16) 16" 407mm
(18) 18" 458mm

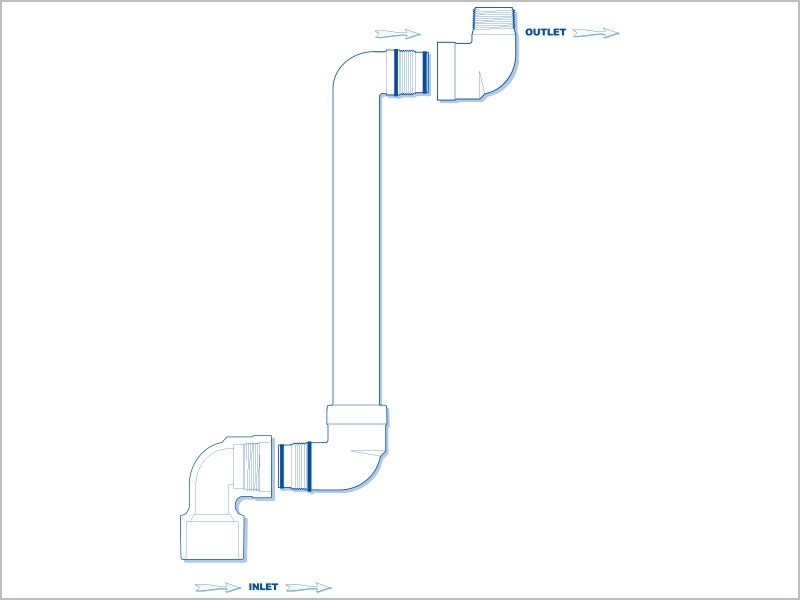

All swing joint components are double O-ring sealed.

* Quick Coupler Outlets available. Contact Dura's Sales Department for part numbers and pricing.

• D3139 rated 315 psi Double O-ring sealed inlet connection.
• Eliminates overtightening.
• Eliminates need for Teflon tape or paste.
