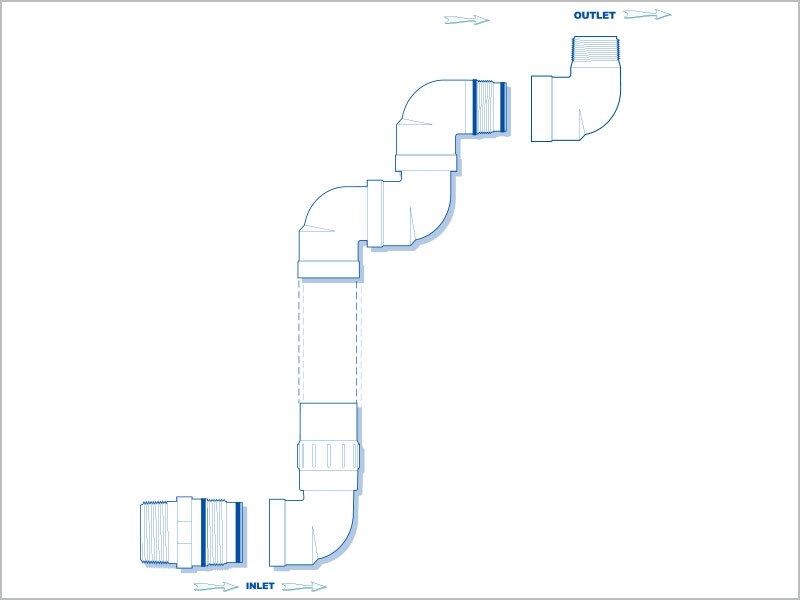

## Ultra Kits

INSTALLER IS TO: (1) Furnish pipe. (2) Cut pipe to desired length. (3) Solvent weld as per ASTM D2855-90. You can find Ordering Instructions at the bottom of this page.

### Part Number Generator

First select "Size", then choose other options with the selection menus or by clicking icons below.

## Inlets

### IPS Standard

**Iron Pipe Size Standard**

(A1) Soc x MS 1" or 1 1/4" or 1 1/2"

(A2) Spg x MS 1" or 1 1/4" or 1 1/2"

(A3) 1 1/4" Spg x 1" MS

(A4) 1 1/2" Spg x 1" MS

(A5) Mipt x MS 1" or 1 1/4" or 1 1/2"

(A6) 1 1/4" Mipt x 1" MS

(A7) 1 1/2" Mipt x 1" MS

(A8) 1 1/2" Mipt x 1 1/4" MS

### BSPT

**British Standard Pipe (Tapered Thread)**

(B1) BSPT x MS 1" or 1 1/4" or 1 1/2"

(B2) 1 1/4" BSPT x 1" MS

(B3) 1 1/2" BSPT x 1" MS

(B4) 1 1/2" BSPT x 1 1/4" MS

### DIN Standard

**Deutsche Industrie Norm**

(D1) 25DN Soc x MS (32mm Actual Size)

(D2) 32DN Soc x MS (40mm Actual Size)

(D3) 40DN Soc x MS (50mm Actual Size)

(D4) 25DN Spg x MS (32mm Actual Size)

(D5) 32DN Spg x MS (40mm Actual Size)

(D6) 40DN Spg x MS (50mm Actual Size)

## Outlets

### IPS Standard

**Iron Pipe Size Standard**

(1) FS x Socket 1" or 1 1/4" or 1 1/2"

(2) FS x Fipt 1" or 1 1/4" or 1 1/2"

(3) FS x Mipt 1" or 1 1/4" or 1 /2"

(4) 1" FS x 1 1/4" Mipt

(5) 1" FS x 1 1/2" Mipt

(6) 1 1/4" FS x 1 1/2" Mipt

(7) 1 1/4" FS x 1" Mipt

(8) 1 1/2" FS x 1" Mipt

(9) 1 1/2" FS x 1 1/4" Mipt

(11) FS x Brass Mipt 1" or 1 1/2"

### Acme Outlets

(13) 1" FS x 1" Acme

(14) 1" FS x 1 1/4" Acme

(15) 1" FS x 1 1/2" Acme

(16) 1 1/4" FS x 1" Acme

(17) 1 1/4" FS x 1 1/4" Acme

(18) 1 1/4" FS x 1 1/2" Acme

(20) 1 1/2" FS x 1 1/4" Acme

(21) 1 1/2" FS x 1 1/2" Acme

### BSPT

**British Standard Pipe (Tapered Thread)**

(22) FS x BSPT 1" or 1 1/4" or 1 /2"

(23) 1" FS x 1 1/4" BSPT

(24) 1" FS x 1 1/2" BSPT

(25) 1 1/4" FS x 1 1/2" BSPT

(26) 1 1/4" FS x 1" BSPT

(27) 1 1/2" FS x 1 1/4" BSPT

All Swing joint components are double O-ring sealed.

**INSTALLER IS TO:**

1. Furnish pipe.

2. Cut pipe to desired length.

3. Solvent weld as per ASTM D2855-90.
